window motor to fit 05/1999-2016 GU/Y61 Nissan Patrol - RIGHT FRONT - NO AUTO
window motor to fit 05/1999-2016 GU/Y61 Nissan Patrol - RIGHT FRONT - NO AUTO
Regular price
$160.00 AUD
Regular price
Sale price
$160.00 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Window Motor — Nissan Patrol
05/1999–2016 Nissan Patrol GU Y61
Right Front Window Motor
Part No. 5161NA — Right Front / Driver’s Side (RHD)
Position
Right Front
Years
05/1999–2016
Chassis
GU / Y61
Auto Function
No
Fitment
Compatible Vehicles
| Make | Model | Chassis | Years | Body |
|---|---|---|---|---|
| Nissan | Patrol | GU / Y61 | 05/1999 – 2016 | Wagon & Ute — Right Front (Driver’s Side, RHD) |
⚠ If your Patrol is a 1997–04/1999 early build, see the NIS8TQ early-build right front listing — it uses a different motor. Do not interchange OEM references between these two applications.
OEM Cross-Reference
Verified Part Numbers
Verified OEM cross-references for the GU Y61 Patrol Right Front (05/1999–2016):
| Brand | Part Number | Notes |
|---|---|---|
| Nissan OEM | 80730-VD20B |

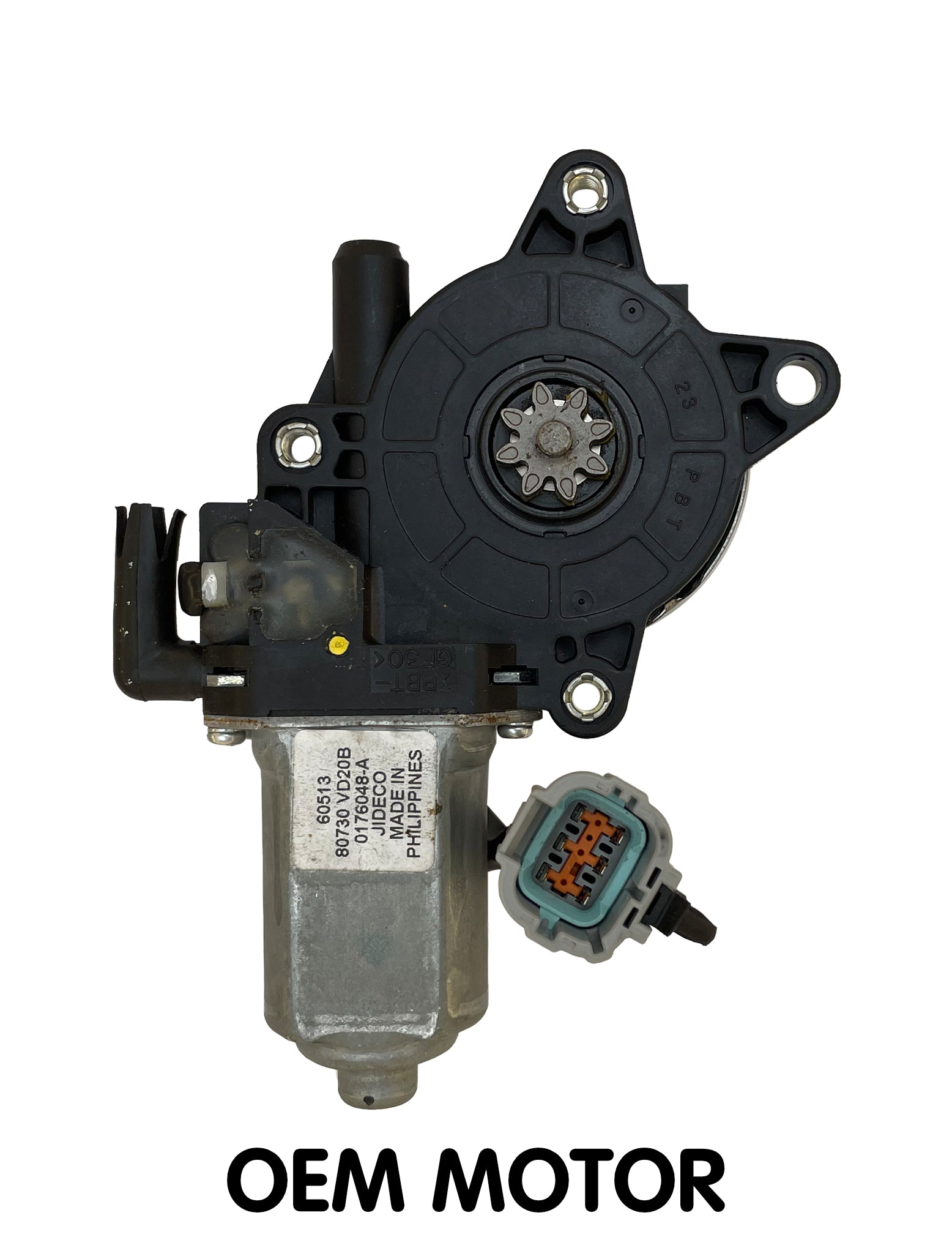

Verified against original Y61 RHF 6-pin motor |
| Bosch | 0 130 820 408 |
Also written as 0130820408
|
Use these numbers to cross-reference with your existing motor or dealer parts catalogue. These references apply to the 05/1999–2016 RHF application only — do not use for the 1997–04/1999 early-build motor (NIS8TQ).
Connector & Wiring
6-Pin Factory-Style Plug

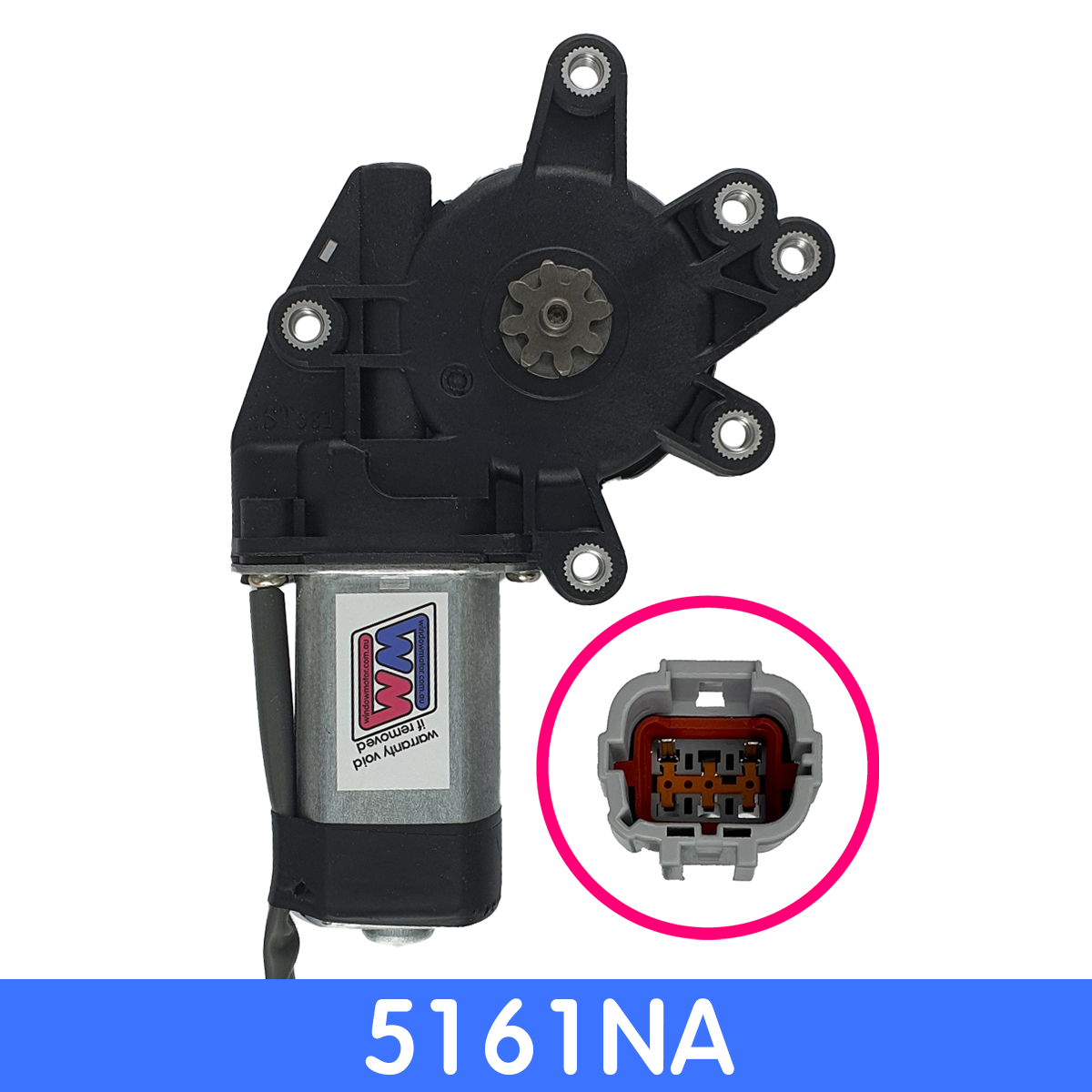

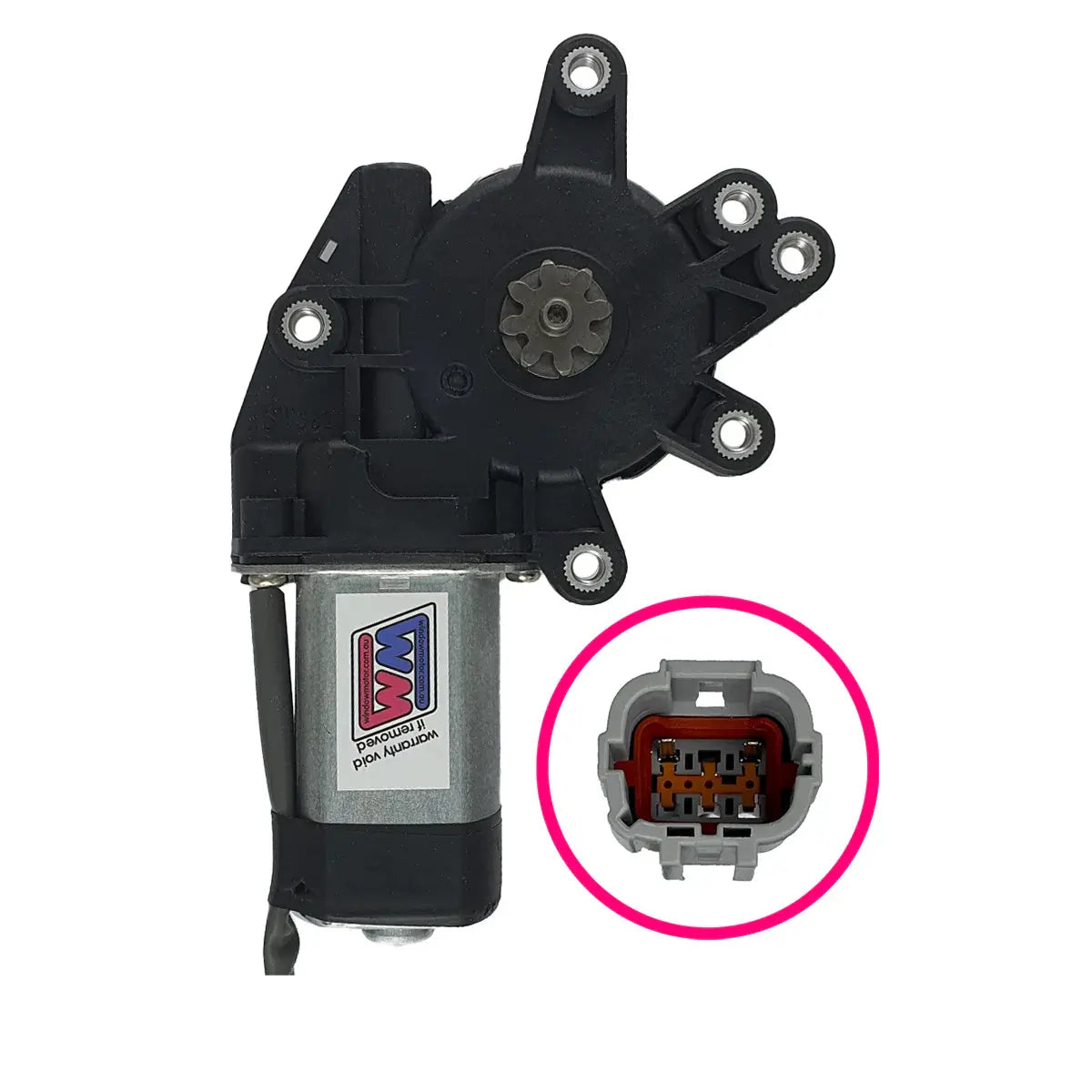

Connector type: 6-pin factory-style plug housing — 2 terminals populated.
The original Nissan GU Y61 right front motor uses a 6-pin connector for the factory auto/one-touch window system. The 5161NA replacement uses the matching 6-pin connector housing, but only the two motor-power terminals are populated.
This allows the replacement motor to connect directly to the original vehicle wiring without modifying the plug or harness.
The original Nissan GU Y61 right front motor uses a 6-pin connector for the factory auto/one-touch window system. The 5161NA replacement uses the matching 6-pin connector housing, but only the two motor-power terminals are populated.
This allows the replacement motor to connect directly to the original vehicle wiring without modifying the plug or harness.
Important — Auto Function
Auto / One-Touch Function
⚠ Auto function will not operate with this replacement motor.
This replacement motor will operate the window normally using the power window switch; however, the factory AUTO / one-touch function will no longer operate. This is intentional — the 5161NA operates as a conventional 2-wire motor through the original 6-pin-style connector. Normal power window operation (up and down via switch) is fully retained.
This replacement motor will operate the window normally using the power window switch; however, the factory AUTO / one-touch function will no longer operate. This is intentional — the 5161NA operates as a conventional 2-wire motor through the original 6-pin-style connector. Normal power window operation (up and down via switch) is fully retained.
Fitment Note
Before You Order
⚠ IMPORTANT: This replacement uses a 6-pin factory-style plug housing with 2 terminals populated. It replaces the original 6-pin RHF motor; however, the factory AUTO / one-touch function will be lost. Normal power window operation is retained.

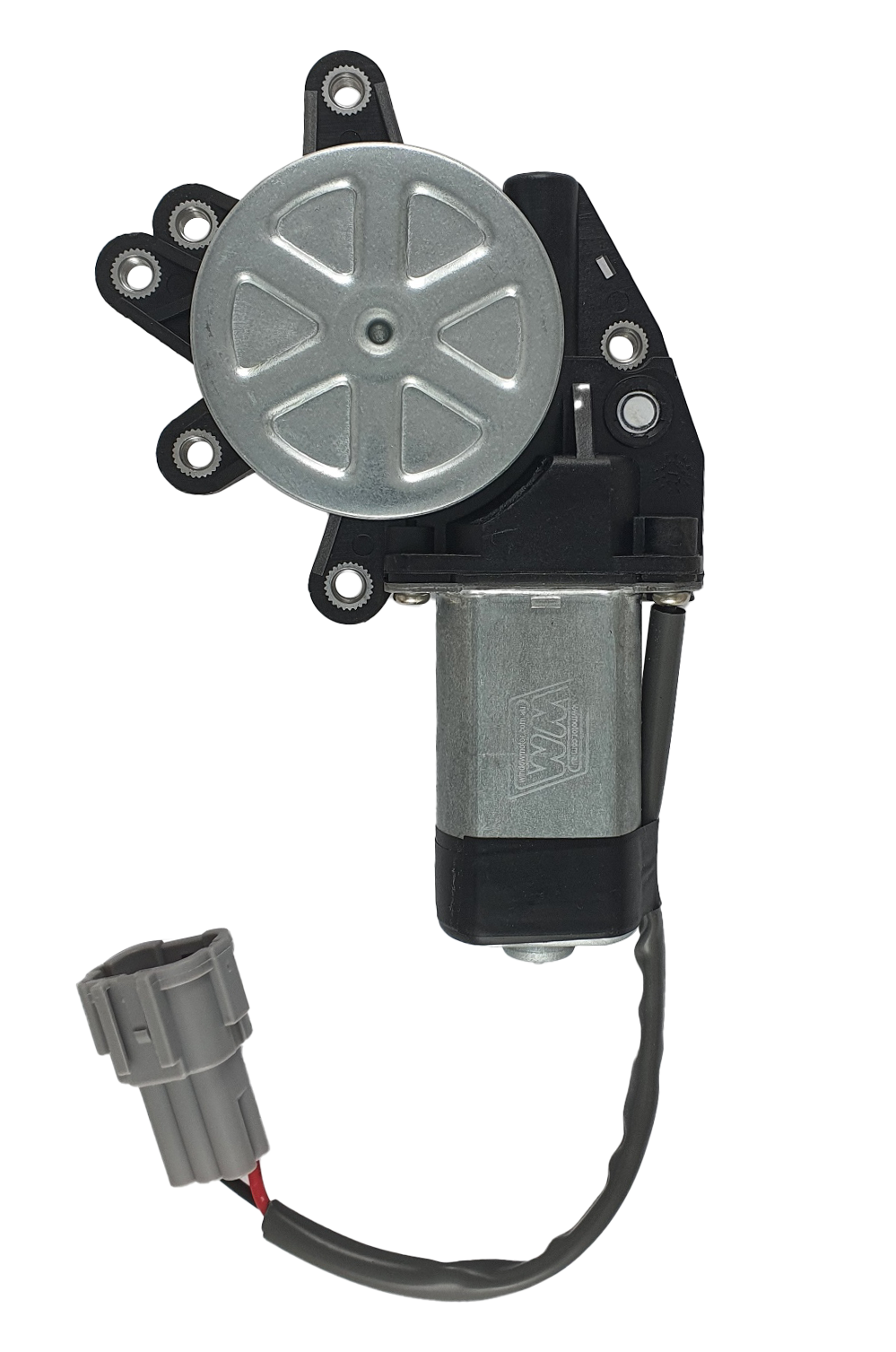

Please also confirm your motor matches our product images before ordering — check mounting holes and drive gear type.
Please also confirm your motor matches our product images before ordering — check mounting holes and drive gear type.
Compatible motors will have matching mounting holes and drive gear.
Why Buy From Us
Warranty & Delivery
Delivery
Express Post
$15 flat · tracked Australia-wide
Dispatch
Same Day
Order by 1 PM AEST
* Warranty void in the event of water damage, switch failure, or improper installation. 30-day exchange policy applies — view full policy.
