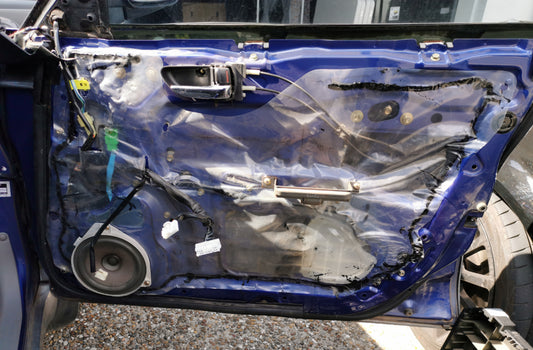

Subaru Impreza & Forester windowmotor replacement the easy way
READ ALL INSTRUCTIONS FIRST !!! This method means that no re-alignment of the regulator is needed after installation. TOOLS NEEDED 10mm Socket & Driver or Spanner Phillips 2 Screwdriver Right Angle Phillips 3 Screwdriver Trim tool or Flat Blade Screwdriver covered with tape Using the Phillips 2 screwdriver and trim tool remove the door trim. If you are unable to remove the door trim it may be best to turn back now and get help. With the window up and door trim removed - Unplug connectors circled in YELLOW. Remove 3 screws circled in PINK holding speaker. Remove speaker and...
Using Scotch-Locks for Wiring
connectors crimps scotch locks scotchlocks wiring
In order to fit some motors it may require " tapping " into the power wires coming from the car with Scotch-Lock style connectors. T-Tap Scotch-Locks in this case Scotch-Lock connectors allow a connection without altering the cars original wiring. This method can also allow the connection of a 2 wire motor to a 6 wire plug. This will remove the Auto-Function. The window will only operate while holding the button. Using pliers close the connectors over the 2 power wires coming from the original plug from the car. In...

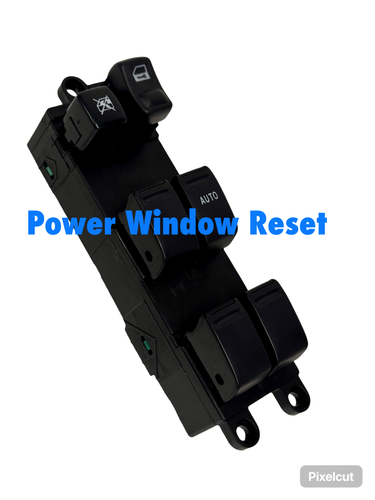

Toyota Reset Procedures
When power to the window motor has been interrupted it may be necessary to reset the power window switch. With the car on, push down on the window switch till the window is fully open. Make sure to hold the switch down for at least 2 seconds after the window has fully opened. You may hear a small tick noise. Pull up on the window switch till the window is fully closed and hold again for 2 seconds. If the reset has been successful, One-Touch Auto Up & Down should now be operational. If installing a used motor or the...
Toyota Auto-Function Delete - Camry, Kluger & Rav4
5 Wire Auto Auto-Function Auto-Function Delete Camry Kluger Multi wire Rav4 Toyota
Only the 2 thickest wires are required for power. Red & Green.
- Cut the Red & Green wires 2cm away from the old plug. The old plug will not be used.
- Attach Red to Red & Green to Black using connectors/crimps.
Nissan S15 Silvia / 200SX Auto-Function Delete
Auto-Function Nissan S15 Silvia
Only the 2 thickest wires from the plug are required for power. Blue & Blue w/Red Trace.
- Cut the plug from the old motor with enough lead to join to the new motor. All BUT the power wires can be removed or taped up.
- Join the power wires from the old plug to the new motor. make sure polarity is correct before permanently joining wires. i.e Engage button for up, window goes up.
